PRODUCT CATALOG

  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

Stock Cable and Cords

We stock the following list cables. We can coil any below into coil cords, made to the dimensions required for your applications.

CONDUCTOR CODES

  • PP         Polypropylene
  • PU         Polyurethane, glossy finish
  • FRPU     Flame-retardant Polyurethane, matte finish
  • HYT       Hytrel
  • PVC       Polyvinyl Chloride
  • TPE       Thermoplasic elastomer, matte finish
  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

Power coil Cords

We make both TPE and PVC jacketed Power Coil Cords.

CONDUCTOR COLOR CODES

  •         Black
  • 2         Black, White
  • 3         Black, White, Green
  • 4         Black, White, Green, Red
  • 5         Black, White, Green, Red, Orange
  • 6         Black, White, Green, Red, Orange, Blue
  • 7         Black, White, Green, Red, Orange, Blue, White/Black stripe

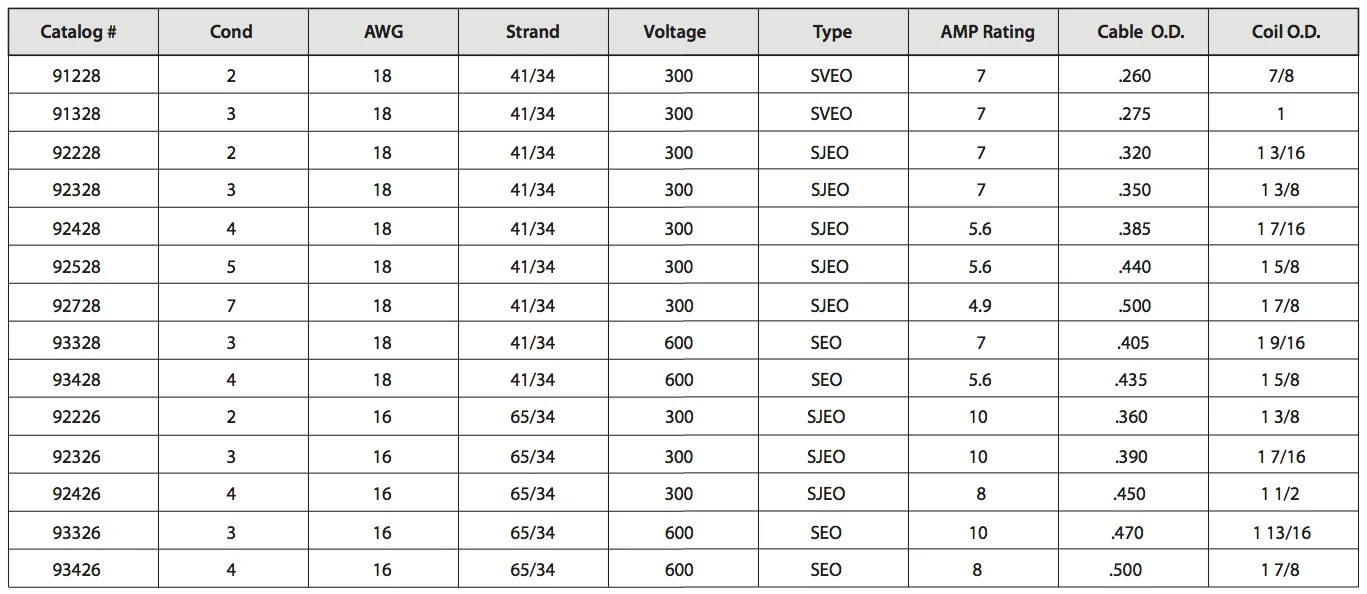

Power Coil Cords • TPE JACKETED

Retracted lengths 48”, 36”, 24”, 12”. Extension Ratio 1 to 5 Service Temperature -45°C to 90°C (200°F). Bare Soft Copper *TPE Insulated *Black Jacket TPE’s unique combination of thermoplastic and rubbery properties offers important advantages over conventional rubber compounds. Comparative technical information is available.

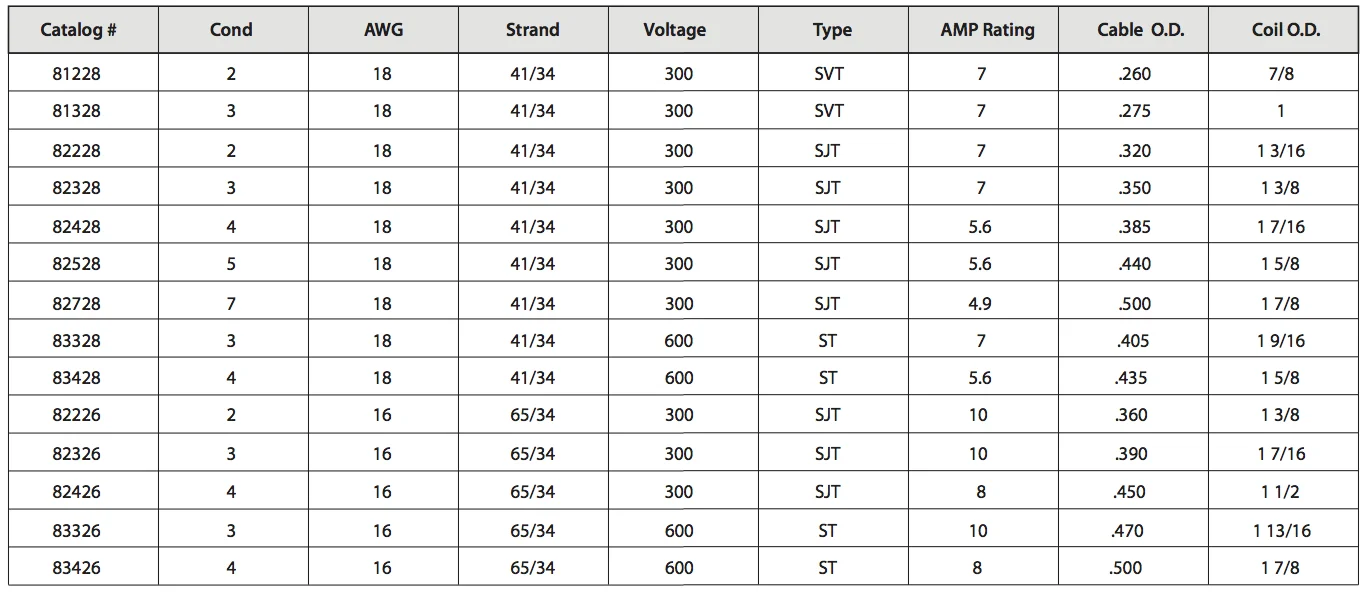

Power Coil Cords • PVC JACKETED
Retracted lengths 48”, 36”, 24”, 12” * Extension Ratio 1 to 5
Max Service Temperature 80°C (UL Listed)
Max Service Temperature 105°C (non-UL Listed)
Bare Soft Copper *PVC Insulated *Black Jacket

  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

ELECTRONIC coil Cords

Meyer Wire is your source for electronics Coil Cords.

CONDUCTOR COLOR CODES

  •         Black                      9         Gray
  • 2         White                    10        Pink
  • 3         Red                       11        Violet
  • 4         Green                   12        Tan
  • 5         Orange                 13        White and Black Stripe
  • 6         Blue                      14        Red and Black Stripe
  • 7         Yellow                   15        Green and Black Stripe
  • 8         Brown

Electronic Coil Cords • PVC

UL Listed. Retracted lengths 48”, 36”, 24”, 12”. Extension ratio 1 to 5
Max. Service Temperature 80°C. Tinned soft copper.
Polypropylene insulated. Black Jacket

Electronic Coil Cords • Polyurethane
Retracted lengths 48”, 36”, 24”, 12”. Extension Ratio 1 to 5
Max. Service Temperature 105°C
Tinned Soft Copper. Polypropylene Insulated. Black Jacket

  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

MINIATURE coil Cords

Meyer Wire makes Miniature Coil Cords.

CONDUCTOR COLOR CODES

  •         Black                      9         Violet
  • 2         White                    10        Gray
  • 3         Red                       11        Light Green
  • 4         Green                   12        Light Blue
  • 5         Orange                 13        Tan
  • 6         Blue                      14        Pink
  • 7         Yellow                   15        Light Yellow
  • 8         Brown

Miniature Coil Cords

Available Retracted lengths 48”, 36”, 24”, 12”. Extension Ratio 1 to 5
Max. Service Temperature 80°C. Tinned Soft Copper
PVC Insulated except where noted as P (Polypropylene) insulated.
PVC Jacketed except where noted as PU (Polyurethane)
Black Jacket. Cable is manufactured with 7 or 19 Strand Tinned Soft Copper.

  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

TEST LEAD coil Cords

Meyer Wire makes Coiled Test Leads.

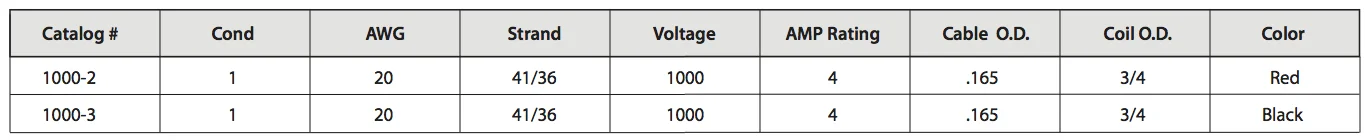

Test Leads • PVC
Retracted lengths 48”, 36”, 24”, 12”. Extension Ratio 1 to 5
Also available with Polyurethane or TPR Jacket.

  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

MODULAR FLAT coil Cords

Meyer Wire makes Modular Flat Coil Cords for communication and other uses.

CONDUCTOR COLOR CODES

  •         Black, Red, Green, Yellow
  • 6         White, Black, Red, Green, Yellow, Blue

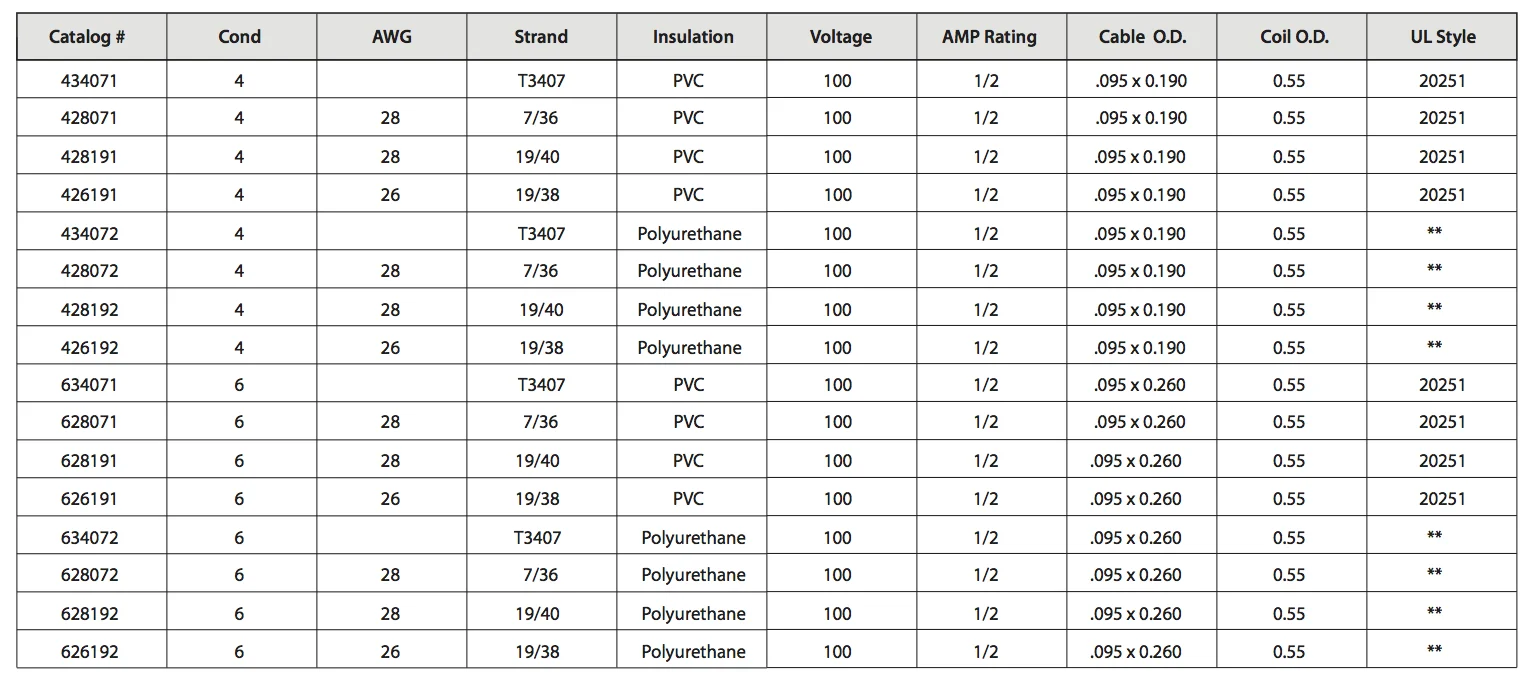

Modular Flat Coil Cords
T3407 is the standard for telephone cord tinsel conductors.
The parts are available with or without modular connectors.
Please specify the retracted or extended length required.
Black and Silver Satin are available from stock. Please contact the Sales Department if you require a different jacket color.
** UL is available with a Flame-retardant Polyurethane jacket (UL Style 20197)
Any of the above Coil Cords can be made in a round configuration.

  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

MODULAR SHIELDED coil Cords

Meyer Wire makes a variety of modular shielded keyboard Coil Cords.

CONDUCTOR COLOR CODES

  •         Black
  • 2         White
  • 3         Red
  • 4         Green
  • 5         Blue
  • 6         Orange
  • 7         Yellow

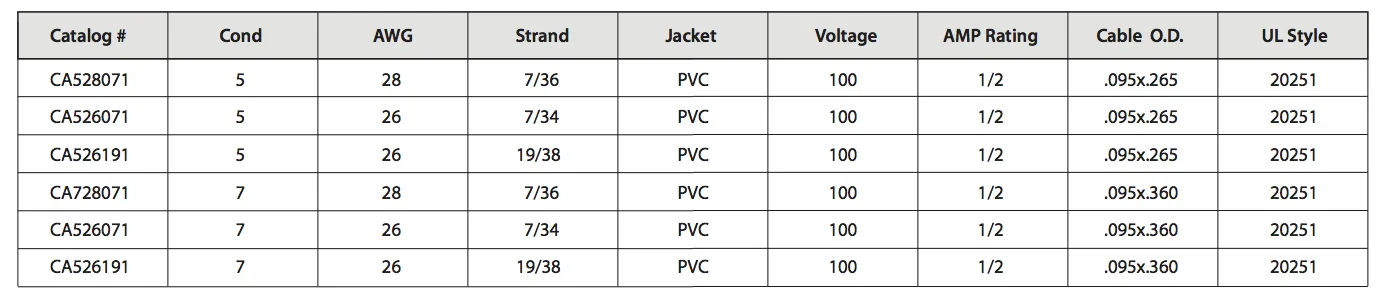

Modular Shielded Coil Cords
UL Listed. Retracted lengths 48”, 36”, 24”, 12”. Extension Ratio 1 to 5
Modular Plugs Both Ends ( Pin 1-1). Tinned Soft Copper.
Polypropylene Insulated. Matte Black Jacket

  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

UNSHIELDED FLAT cABLE

Meyer Wire makes Unshielded Flat Cable for a variety of uses.

CONDUCTOR COLOR CODES

  •         Black, Red, Green, Yellow
  • 6         White, Black, Red, Green, Yellow, Blue
  • 8         Gray, Orange, Black, Red, Green, Yellow, Blue, Brown

Unshielded Flat Cable
T3407 is the standard for telephone cord tinsel conductors.
Black and Silver Satin are available from stock.
Please contact the Sales Department if you require a different jacket color.

  Coil Cords, Cable, and C  ustom W  ire Manufacturer. Coiled cords, coil cords, electrical coil cords, coil cord manufacturer, cables coiled, cord coiled curly, cord electric coiled, cord electrical coiled, cord sets coiled, stock cable cords, cable design services, power cable cords, electronics coil cords, miniature coil cords, modular flat coil cords, modular shielded keyboard coil cord, unshielded flat cable, shielded flat cable.

SHIELDED FLAT cABLE

Meyer Wire makes a variety of Shielded Flat Cable.

CONDUCTOR COLOR CODES

  •         Blue, Black, Red, Green, Yellow, Drain
  • 7         Blue, Orange, Black, Red, Green, White, Brown, Drain, and more colors available

Shielded Flat Cable
A shield of aluminum mylar tape with a 22 AWG 7/30 prebond drain wire provides RFI protection. This cable has been designed to fit RJII and RJ45 connectors.
Black and Silver Satin are available from stock.
Please contact the Sales Department if you require a different jacket color.
